5-wire USB Touch Panel Controller.
-
This touch panel controller provides the optimistic performance of your analog resistive touch panels for 5-wire modelss
-
It communicates with PC system directly through USB connector.
-
You can see how superior the design is in sensitivity accuracy and friendly operation.
-
The touch panel driver emulates mouse left and right button function and supports operation systems, including Microsoft Windows 95/98, Windows Me, Windows NT 4.0, Windows CE 2.12/3.0/net, Dos, Linux RedHat, Linux Mandrake, iMac/os 9, etc.
USB Type Controller.

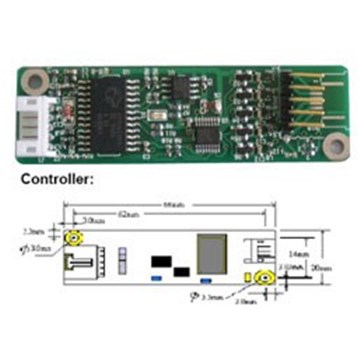

Circuit Board Dimension : 20mmX68mm(0.97inchesX2.68inches)(5-Wire).
Power Requirements : D.C.+5V (100mA typical,50mVpeak to peak max rippleand noise).
Operating Temperature : 0 to 500C.
Storage Temperature : -40 to 800C.
Relative Humidity : 95% at 600C.
Interface : USB 1.1 Low Speed.
Report rate USB Model : Max. 160 point/sec.
Response time : Max. 35 ms.
Attached Cable : 6' shielded cable with USB-Aconnector for USB port.
Regulatoty Approvals : FCC-B, CE, Unaffected by EMI from other nearly and other display devices.
EMI : Unaffected by environmental EMI.
Panel resistsnce : 5 wire resistive model: 50~200ohm .
